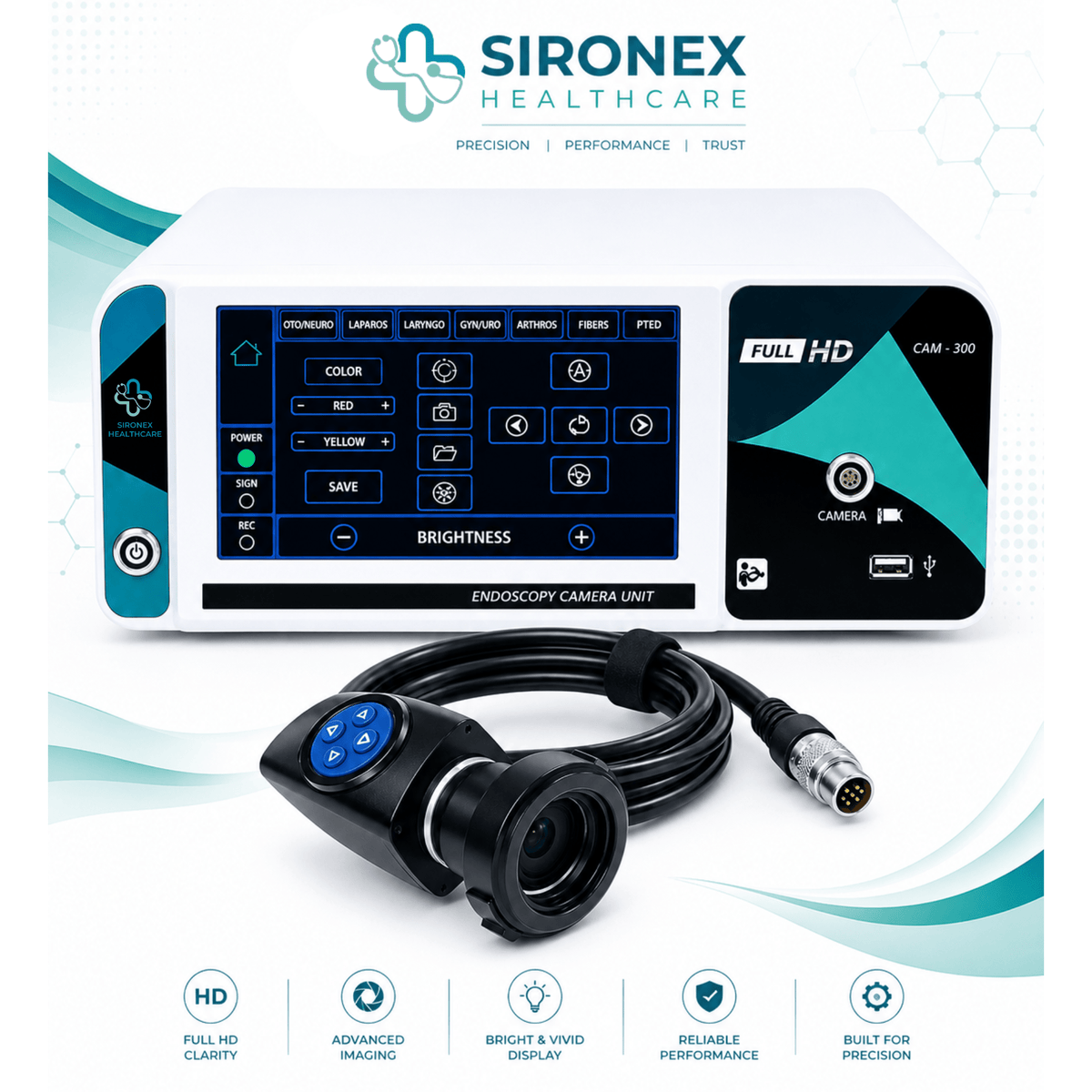

SIRONEX ENCAM 300 1080P Full HD Endoscopy Camera System

The SIRONEX ENCAM 300 is a Full HD endoscopy camera system designed for high-quality endoscopic visualization and image documentation. It provides 1080P Full HD recording at 60 FPS using a 1/1.8-inch, 2.4-megapixel image sensor. encam 300(4)

The system features an on-screen display/touchscreen interface, camera-head controls and adjustable image settings. The camera head provides four buttons for functions including white balance, freeze and brightness adjustment. encam 300(4)

For image documentation, the ENCAM 300 supports video recording and image capture via USB/Pendrive. It provides HDMI, DVI, CVBS and SDI outputs for integration with compatible display and video systems. encam 300(4)

The system supports compatible rigid and flexible endoscopes and an LED light source. encam 300(4)

The performance-features page also identifies multiple specialty/surgical modes, colour and brightness adjustment, camera and recording status indication, and touchscreen operation.

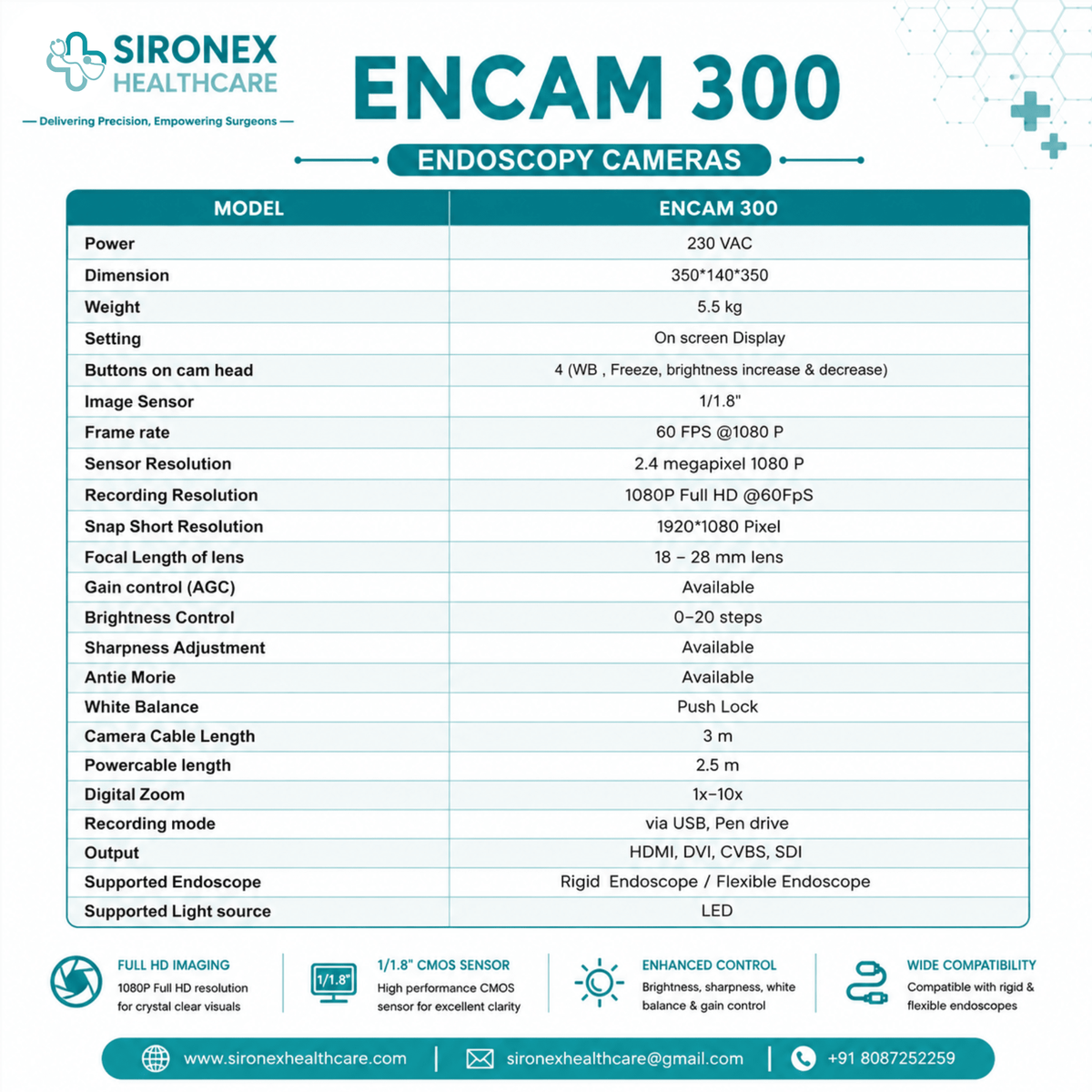

Key Features

• 1080P Full HD endoscopy camera
• 60 FPS at 1080P
• 2.4 MP image sensor
• 1/1.8-inch image sensor
• Touchscreen / on-screen display
• Video recording and image capture
• USB/Pendrive recording
• 1×–10× digital zoom
• 4 camera-head control buttons
• White balance control
• Freeze function
• Brightness adjustment
• Colour adjustment
• Gain control (AGC)
• Sharpness adjustment
• Anti-moiré function
• Push-lock white balance
• HDMI output
• DVI output
• CVBS output
• SDI output
• Rigid endoscope compatibility
• Flexible endoscope compatibility
• LED light-source support
• 3 m camera cable

Performance Features

The uploaded performance page highlights:

• Touchscreen interface
• Multiple specialty modes
• Camera and recording status indication
• Video recording and image capture via USB
• Four camera-head buttons
• Colour adjustment
• Brightness adjustment
• Multiple surgical modes on the main screen

Applications

The SIRONEX ENCAM 300 can be used as an endoscopic imaging and recording system with compatible rigid or flexible endoscopes.

The supplied document indicates multiple surgical/specialty modes, including laparoscopy and Gyn/Uro, but the exact clinical application should be determined according to the compatible endoscope, configuration and intended clinical use.  encam 300

Warranty

1.5 Year Manufacturing Warranty

Covered: Manufacturing defects under normal intended use.

Not Covered: Damage caused by misuse, unauthorized modification, improper installation, physical damage or operation outside recommended conditions.
