Product Description

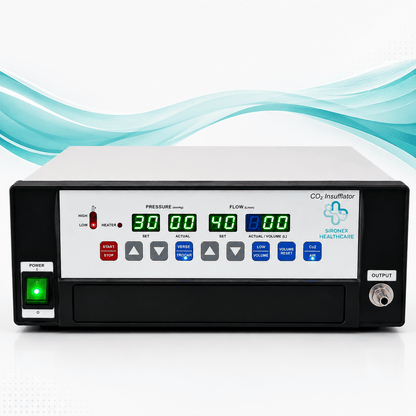

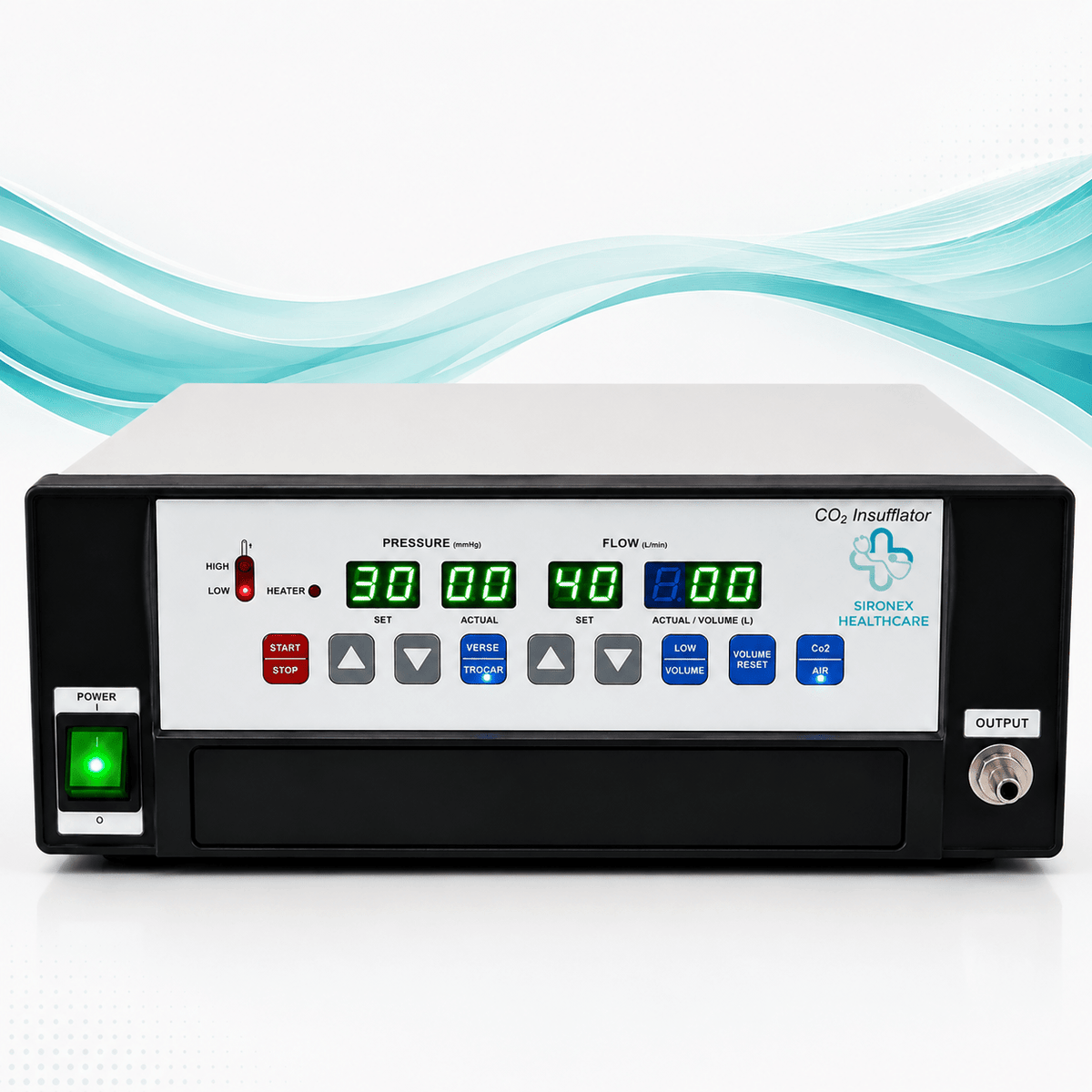

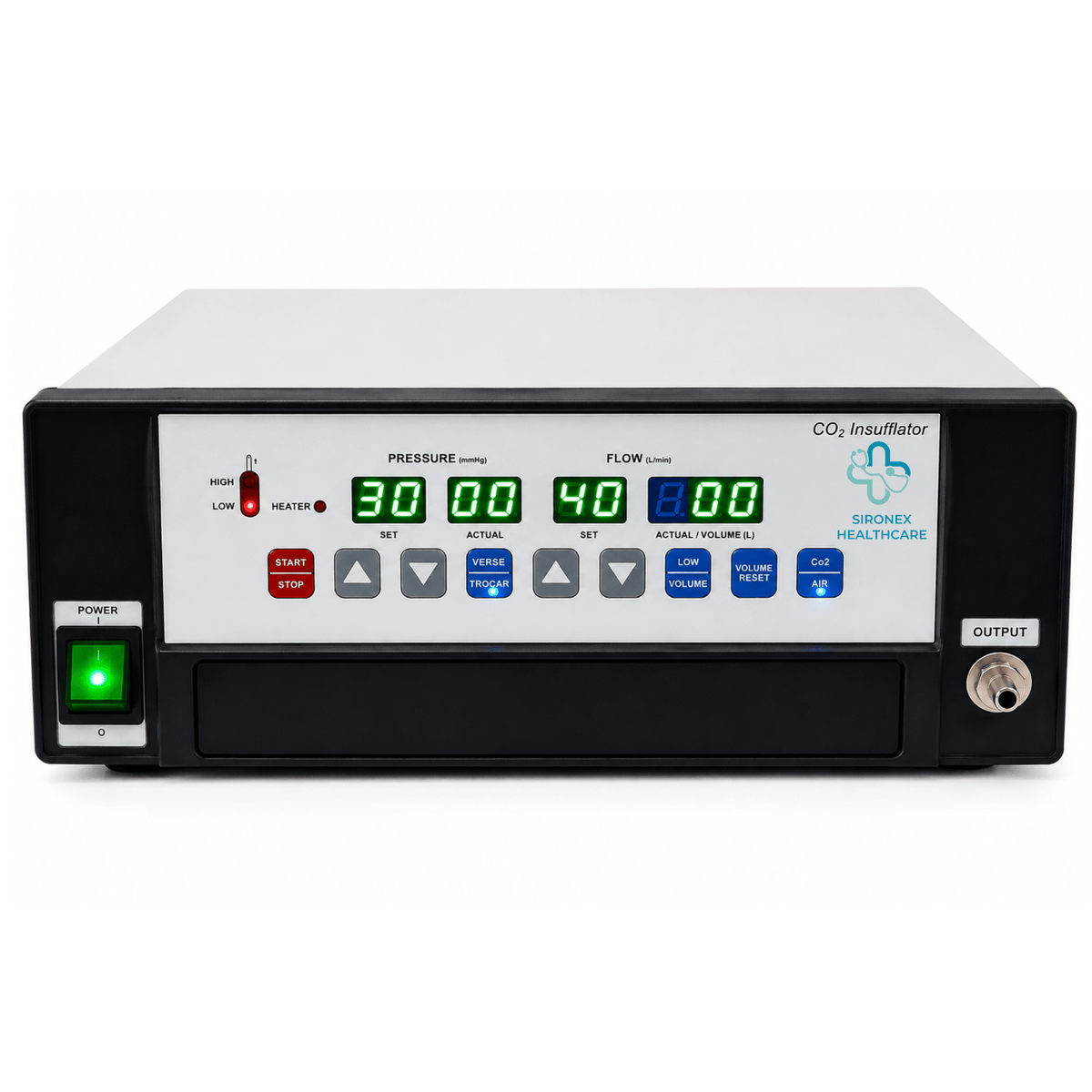

The SIRONEX SIB 40 L CO₂ Insufflator is a medical-grade CO₂ insufflation system designed for controlled gas delivery during laparoscopic procedures. It supports Veress Mode and Trocar Mode, with adjustable pressure from 4 to 30 mmHg.

In Trocar Mode, the system provides adjustable gas flow from 1 to 40 LPM, while Veress Mode provides a fixed 2 LPM flow. The unit features a high-brightness seven-segment LED display with feather-touch keypad, audio indication and over-pressure indication.

Key Features

• 40 LPM maximum gas flow
• Medical-grade CO₂ gas
• Veress Mode
• Trocar Mode
• Adjustable pressure 4–30 mmHg
• Trocar flow range 1–40 LPM
• Veress flow 2 LPM fixed
• Flow adjustment in 1 LPM/step
• Pressure adjustment in 1 mmHg/step
• Cylinder or central gas supply connection
• High-brightness seven-segment LED display
• Feather-touch keypad
• Audio indicator
• Over-pressure indicator
• Compact design
• 3.5 kg weight SIB 40 L CO2 Insufflator

Applications

The SIRONEX SIB 40 L CO₂ Insufflator is designed for controlled CO₂ insufflation during minimally invasive surgical procedures.

Suitable Applications

• Laparoscopic surgery
• Minimally invasive surgery
• Abdominal insufflation
• General laparoscopic procedures
• Gynecological laparoscopy
• Urological laparoscopy
• Surgical endoscopy procedures requiring CO₂ insufflation

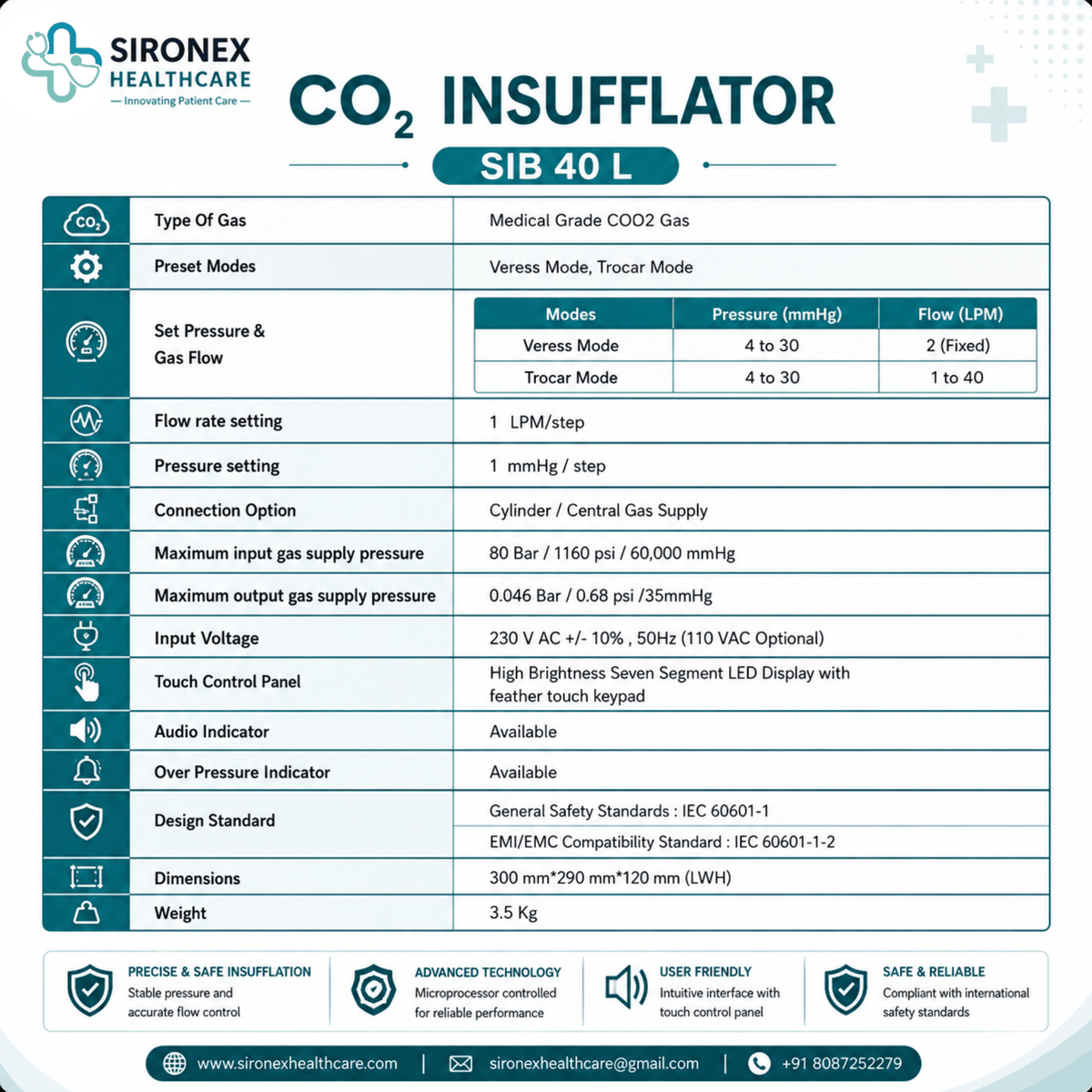

Gas Supply & Control

Gas Type

Medical Grade CO₂ Gas

Connection Options

Cylinder / Central Gas Supply

Pressure Range

4–30 mmHg

Maximum Flow

40 LPM

Control Resolution

1 LPM/step flow adjustment
1 mmHg/step pressure adjustment SIB 40 L CO2 Insufflator

Safety & Monitoring Features

• Audio indicator
• Over-pressure indicator
• Seven-segment LED display
• Feather-touch keypad
• Controlled pressure adjustment
• Controlled gas-flow adjustment

Warranty

1 Year Manufacturing Warranty

Covered Under Warranty

• Manufacturing defects
• Defects in workmanship under normal intended use

Not Covered

• Physical damage
• Misuse or improper handling
• Unauthorized modification or repair
• Incorrect installation
• Damage caused by unsuitable electrical supply
• Damage caused by incorrect gas connection
• Damage caused by operation outside recommended conditions
• Normal wear and tear of consumable/accessory components

Warranty service is subject to inspection and verification by SIRONEX Healthcare.
