SIRONEX G 400 Digi 400W Electrosurgical Unit

The SIRONEX G 400 Digi is a 400W electrosurgical generator designed to provide monopolar and bipolar electrosurgical functions in a single unit.

Operating at 480 kHz, the system provides multiple monopolar cutting and coagulation modes, with Pure Cut output up to 400W. Bipolar operation includes Bi-Cut, Bi-Coag Micro and Bi-Coag Macro modes, each specified at up to 120W. G_400_Digi

The unit features a 7-segment LED display, tissue response circuit and patient plate monitoring system. G_400_Digi

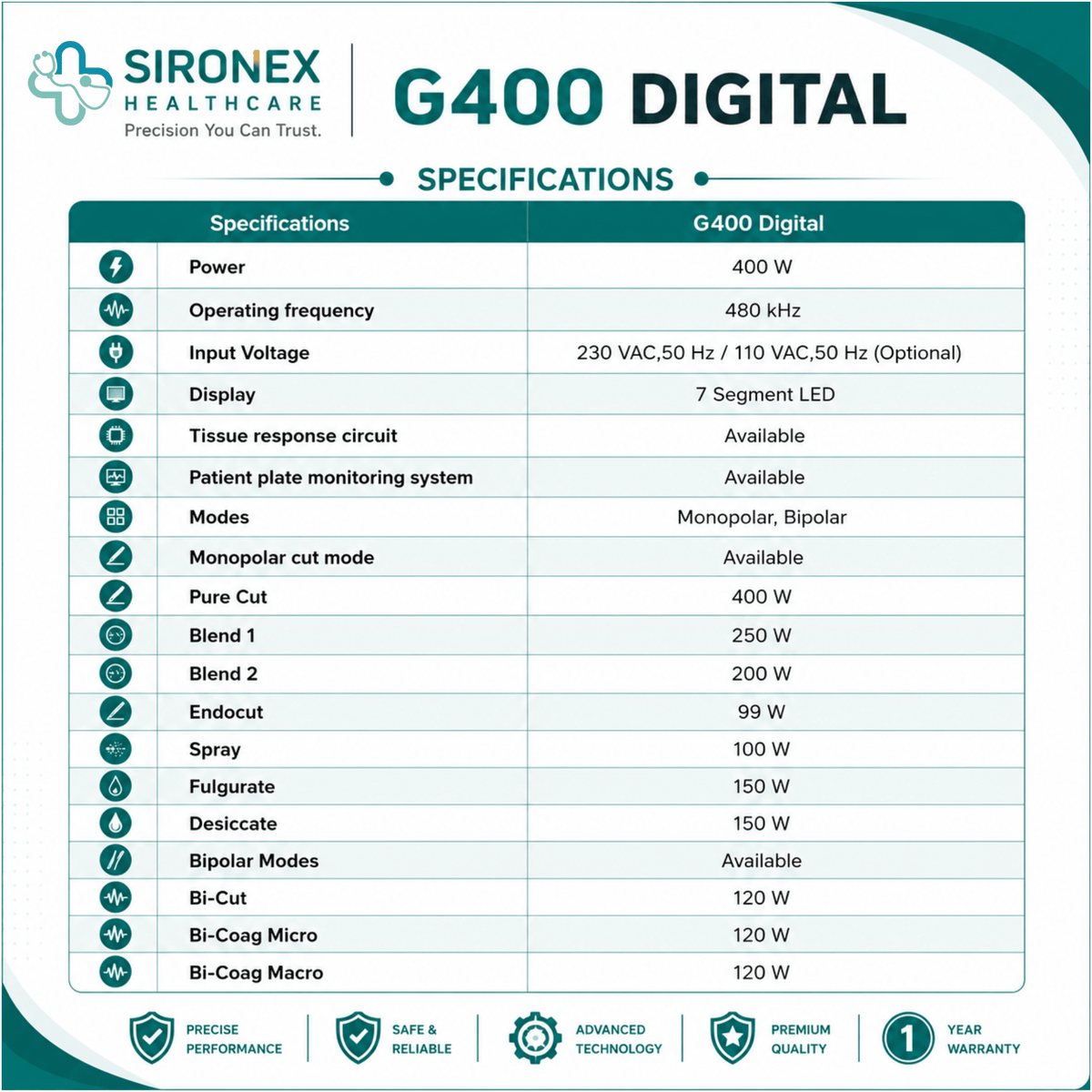

Key Features

• 400W maximum power
• 480 kHz operating frequency
• Monopolar & Bipolar operation
• Multiple monopolar cutting/coagulation modes
• Pure Cut up to 400W
• Blend 1 up to 250W
• Blend 2 up to 200W
• Endocut up to 99W
• Spray up to 100W
• Fulgurate up to 150W
• Desiccate up to 150W
• Bi-Cut up to 120W
• Bi-Coag Micro up to 120W
• Bi-Coag Macro up to 120W
• Tissue response circuit
• Patient plate monitoring system
• 7-segment LED display
• 230 VAC, 50 Hz input
• 110 VAC, 50 Hz optional configuration

Applications

The SIRONEX G 400 Digi is designed for electrosurgical procedures requiring monopolar and bipolar cutting and coagulation functions.

Its multiple operating modes allow it to be configured for different electrosurgical requirements, including:

• Monopolar cutting
• Monopolar coagulation
• Bipolar cutting
• Bipolar coagulation
• Pure cutting applications
• Blend cutting applications
• Endocut applications
• Spray coagulation
• Fulguration
• Desiccation

Warranty

1.5 Year Manufacturing Warranty

Warranty Coverage:

• Manufacturing defects under normal intended use
• Defects related to the supplied unit's manufacturing or workmanship

Warranty Does Not Cover:

• Physical damage
• Damage caused by misuse or improper handling
• Unauthorized modification or repair
• Incorrect installation
• Damage caused by unsuitable electrical supply
• Damage resulting from use outside recommended operating conditions
