Product Description

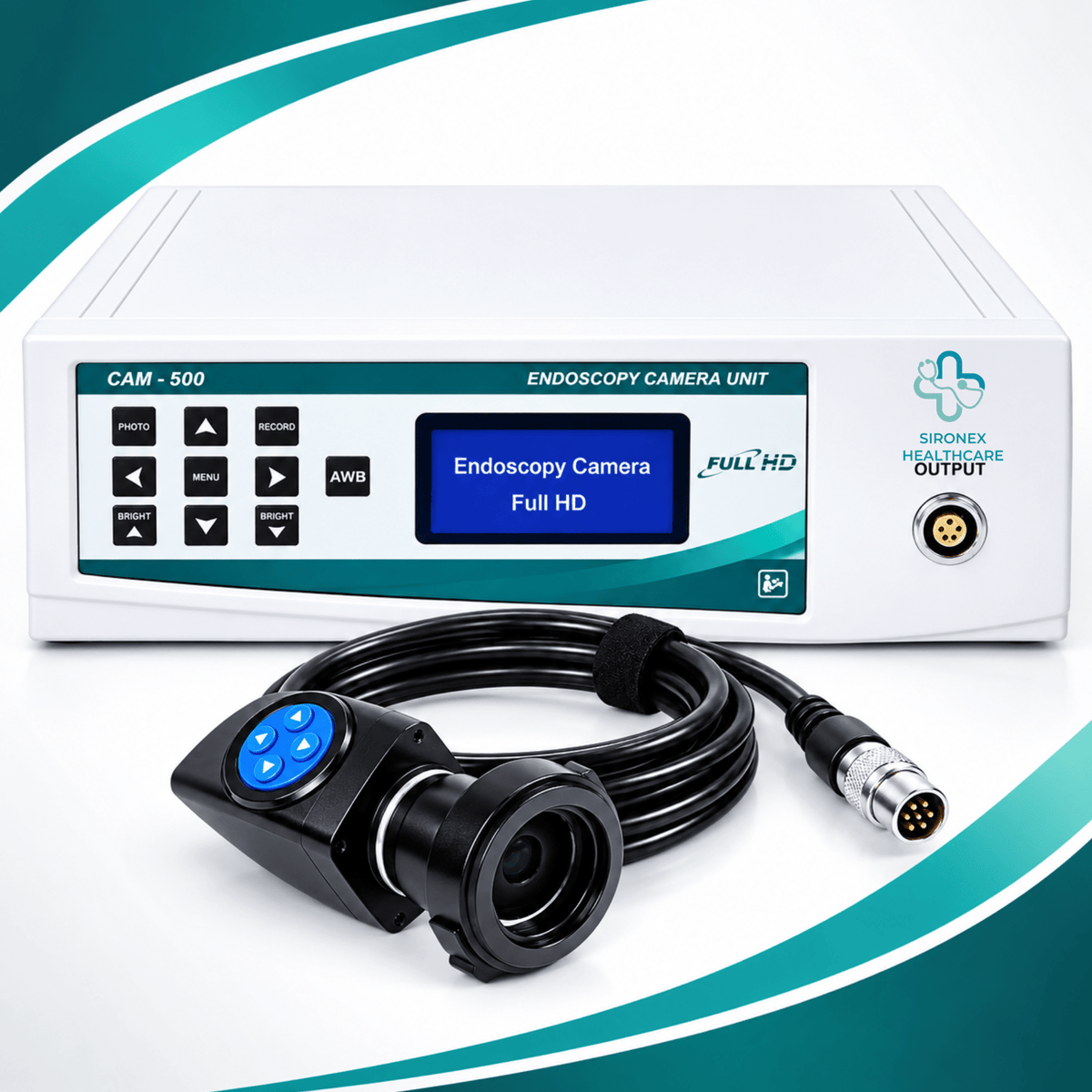

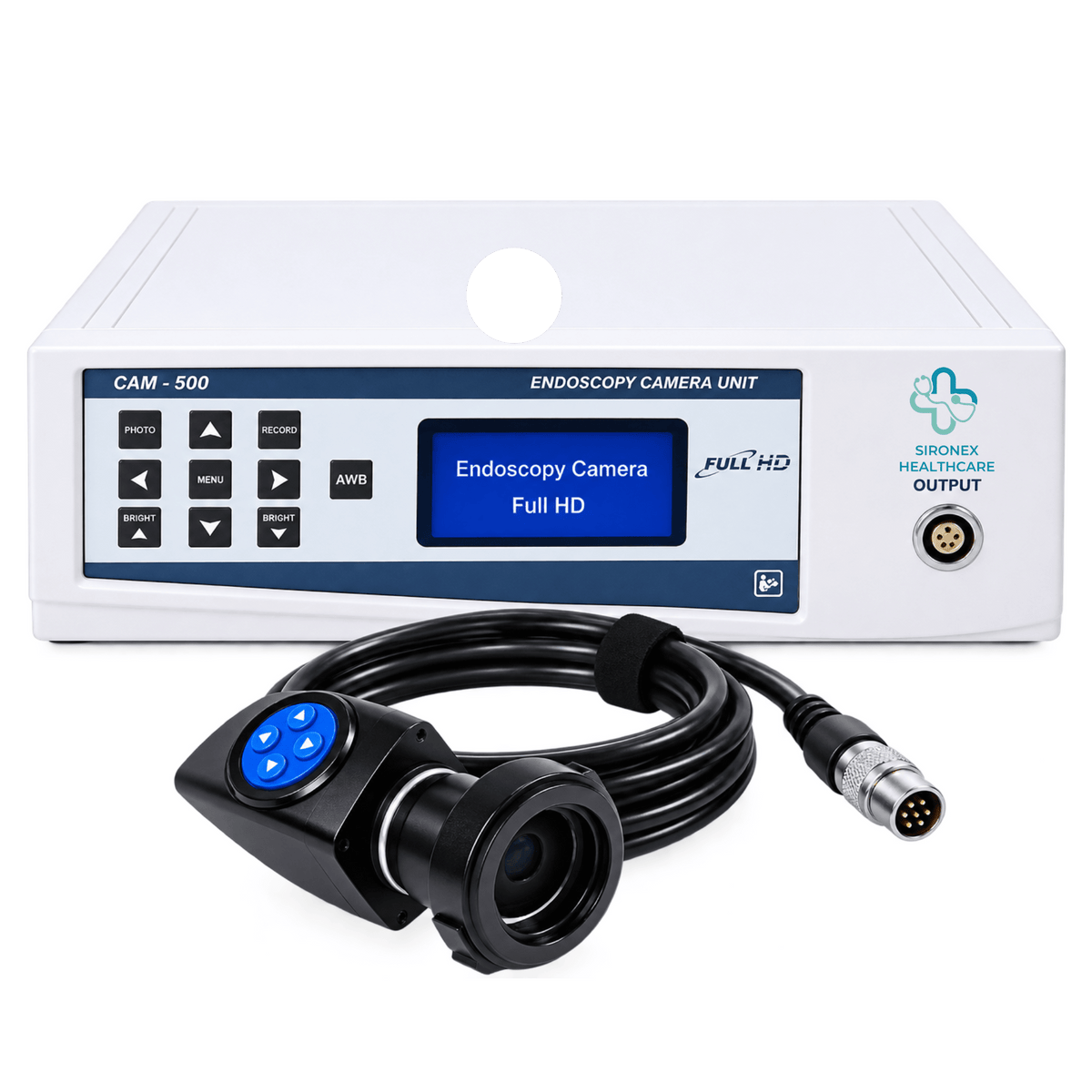

The SIRONEX ENCAM 500 Endoscopy Camera System is a Full HD endoscopic imaging system designed for high-quality visualization during endoscopic procedures. The system provides 1080P Full HD imaging at up to 60 FPS, with a 2.4-megapixel image sensor, on-screen display functionality, digital zoom and multiple video output interfaces.

The ENCAM 500 supports both rigid and flexible endoscopes and is compatible with an LED light source. The system also provides video recording and image capture through USB/Pendrive, making it suitable for clinical documentation, procedure recording and image review.

The camera head incorporates convenient control buttons for functions including white balance, freeze and brightness adjustment. The system also features gain control, sharpness adjustment, anti-moiré functionality and push-lock white balance.

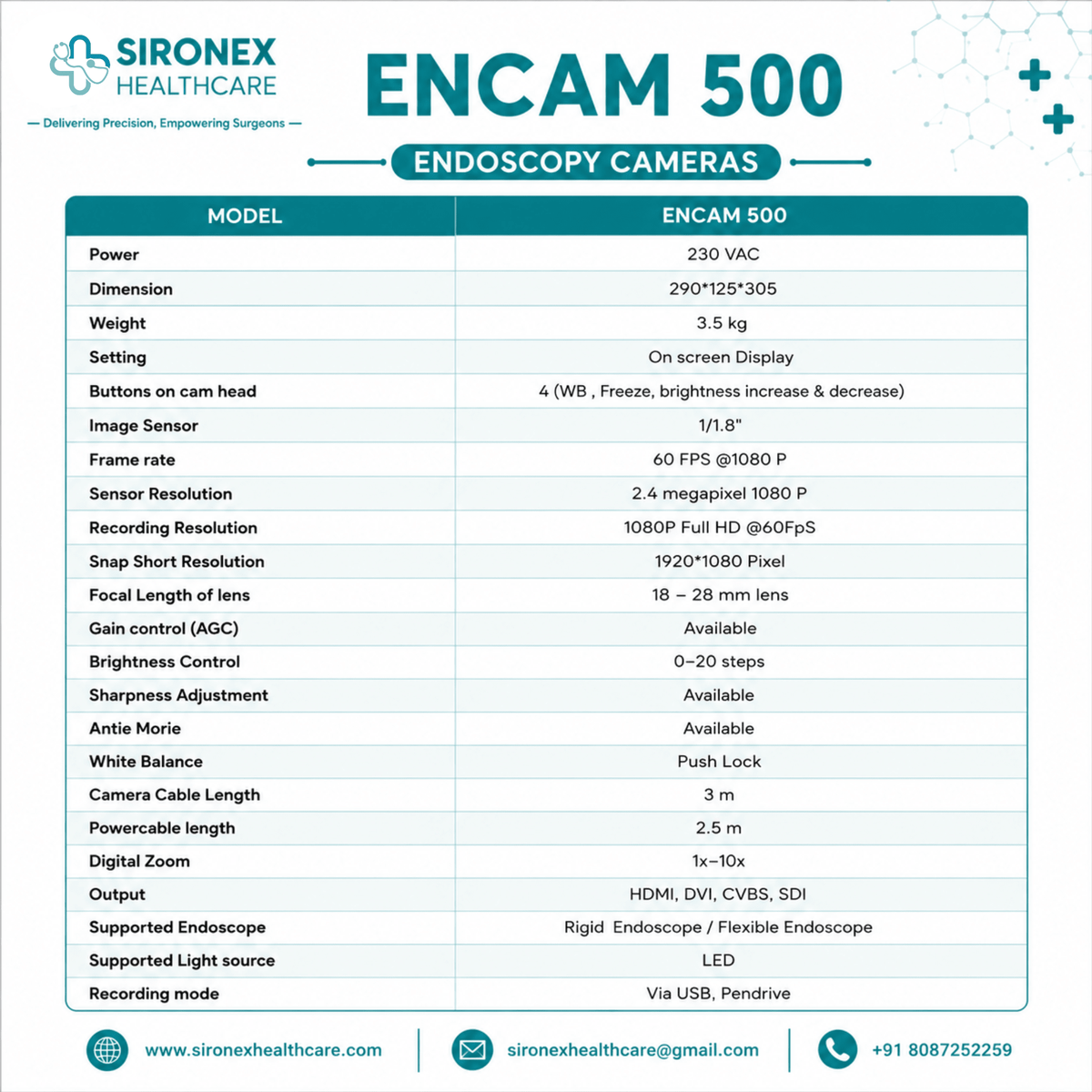

Key Features

• 1080P Full HD endoscopy camera
• 60 FPS frame rate at 1080P
• 2.4 MP image sensor
• 1/1.8-inch image sensor
• On-Screen Display (OSD)
• Video recording and image capture
• 1x–10x digital zoom
• Gain control (AGC)
• Adjustable brightness from 0–20 steps
• Sharpness adjustment
• Push-lock white balance
• Camera-head control buttons
• HDMI, DVI, CVBS and SDI outputs
• Supports rigid and flexible endoscopes
• USB/Pendrive recording
• 3 m camera cable
• 230 VAC power supply

Package Contents

• ENCAM 500 Endoscopy Camera Unit
• Camera Head with Cable
• Power Cable
• Compatible accessories as applicable

Warranty

2 Year Manufacturing Warranty
